InferOpt.jl:
Combinatorial Optimization-enhanced Machine Learning

Léo Baty

leo.baty@enpc.fr

École des Ponts, CERMICS

2024-07-12

InferOpt.jl

State-of-the-art tools to incorporate combinatorial optimization algorithms in machine learning pipelines
Compatible with ML and AD ChainRules Julia ecosystem

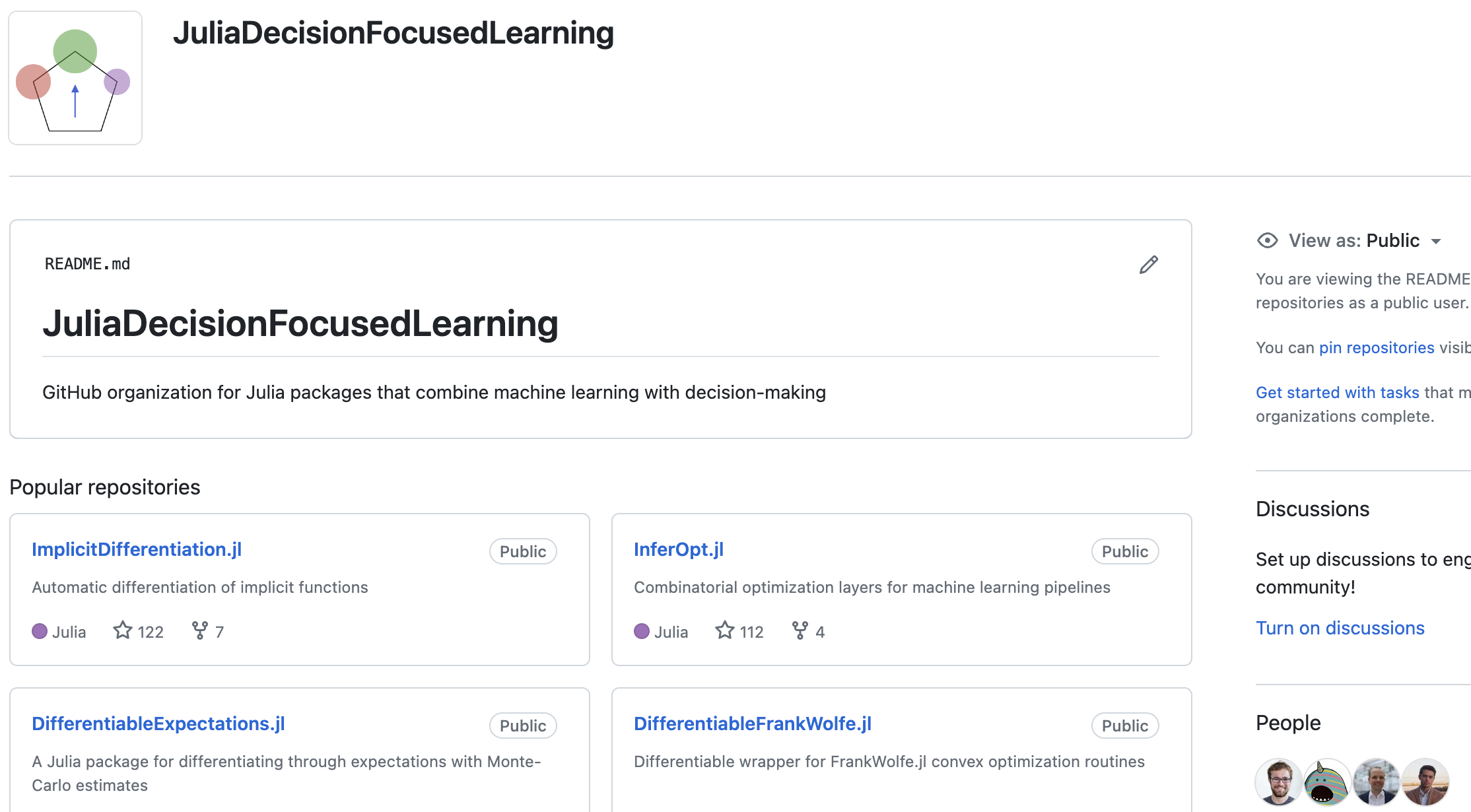

Part of the new JuliaDecisionFocusedLearning GitHub organization

Why?

Increase the expressivity of machine learning models, by having combinatorial outputs
Leverage algorithms for “easy” problems to solve harder ones

Difficulty: combinatorial algorithms are piecewise constant functions \(\implies\) no informative gradients

InferOpt provides differentiable layers and loss functions to overcome this issue.

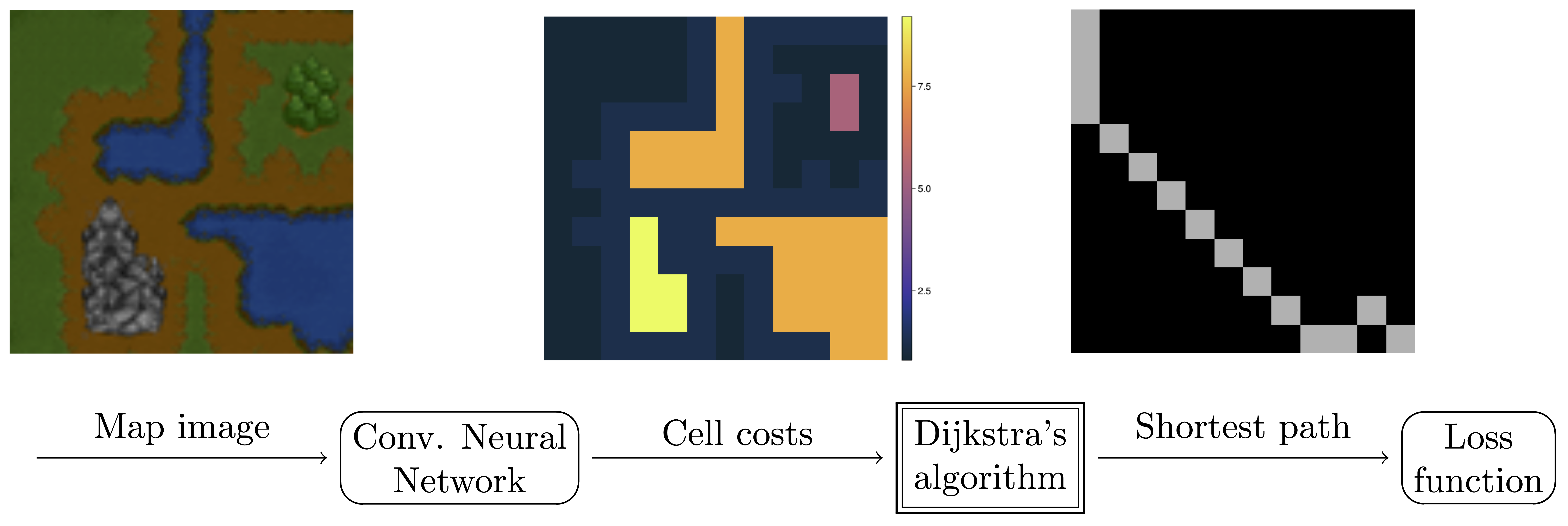

Path finding on Warcraft maps

Input: map image
Goal: find the shortest path from top left to bottom right
True cell costs are unknown

Dataset: Set of (image, path) pairs to imitate

Retrieving the dataset

using InferOptBenchmarks.Warcraft
b = WarcraftBenchmark();

Download and format the data:

dataset = generate_dataset(b, 50)
train_dataset, test_dataset = dataset[1:45], dataset[46:50]
x, y_true, θ_true = test_dataset[1]
plot_data(x, y_true, θ_true)

The neural network

First three layers of a resnet

model = generate_statistical_model(b)

Chain(
  Conv((7, 7), 3 => 64, pad=3, stride=2, bias=false),  # 9_408 parameters
  BatchNorm(64, relu),                  # 128 parameters, plus 128
  MaxPool((3, 3), pad=1, stride=2),
  Parallel(
    addact(NNlib.relu, ...),
    identity,
    Chain(
      Conv((3, 3), 64 => 64, pad=1, bias=false),  # 36_864 parameters
      BatchNorm(64),                    # 128 parameters, plus 128
      NNlib.relu,
      Conv((3, 3), 64 => 64, pad=1, bias=false),  # 36_864 parameters
      BatchNorm(64),                    # 128 parameters, plus 128
    ),
  ),
  AdaptiveMaxPool((12, 12)),
  InferOptBenchmarks.Warcraft.average_tensor,
  InferOptBenchmarks.Warcraft.neg_tensor,
  InferOptBenchmarks.Warcraft.squeeze_last_dims,
)         # Total: 9 trainable arrays, 83_520 parameters,
          # plus 6 non-trainable, 384 parameters, summarysize 330.312 KiB.

Predicted costs

using Plots
θ = model(x)

kw = (; framestyle=:none, yflip=true, aspect_ratio=:equal, legend=false, size=(300, 300))
clim=(minimum(θ_true), maximum(θ_true))
heatmap(-θ; kw..., clim)

Combinatorial algorithm

We use the Dijkstra algorithm, wrapped from Graphs.jl

maximizer = generate_maximizer(b)

dijkstra_maximizer (generic function with 1 method)

Output of untrained pipeline

heatmap(maximizer(θ); kw...)

Path we want to output

heatmap(maximizer(-θ_true); kw...)

Computing derivatives (Zygote)

Either fails…

using Zygote

Zygote.jacobian(maximizer, θ)

ErrorException: ErrorException("Mutating arrays is not supported -- called setindex!(Matrix{Int64}, ...)\nThis error occurs when you ask Zygote to differentiate operations that change\nthe elements of arrays in place (e.g. setting values with x .= ...)\n\nPossible fixes:\n- avoid mutating operations (preferred)\n- or read the documentation and solutions for this error\n  https://fluxml.ai/Zygote.jl/latest/limitations\n")
Mutating arrays is not supported -- called setindex!(Matrix{Int64}, ...)
This error occurs when you ask Zygote to differentiate operations that change
the elements of arrays in place (e.g. setting values with x .= ...)

Possible fixes:
- avoid mutating operations (preferred)
- or read the documentation and solutions for this error
  https://fluxml.ai/Zygote.jl/latest/limitations

Stacktrace:
  [1] error(s::String)
    @ Base ./error.jl:35
  [2] _throw_mutation_error(f::Function, args::Matrix{Int64})
    @ Zygote ~/.julia/packages/Zygote/nsBv0/src/lib/array.jl:70
  [3] (::Zygote.var"#539#540"{Matrix{Int64}})(::Nothing)
    @ Zygote ~/.julia/packages/Zygote/nsBv0/src/lib/array.jl:82
  [4] (::Zygote.var"#2623#back#541"{Zygote.var"#539#540"{Matrix{Int64}}})(Δ::Nothing)
    @ Zygote ~/.julia/packages/ZygoteRules/M4xmc/src/adjoint.jl:72
  [5] path_to_matrix
    @ ~/.julia/packages/InferOptBenchmarks/zB6U9/src/Warcraft/grid_graph.jl:121 [inlined]
  [6] (::Zygote.Pullback{Tuple{typeof(InferOptBenchmarks.Warcraft.path_to_matrix), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, Vector{Int64}}, Any})(Δ::Matrix{Int64})
    @ Zygote ~/.julia/packages/Zygote/nsBv0/src/compiler/interface2.jl:0
  [7] #dijkstra_maximizer#12
    @ ~/.julia/packages/InferOptBenchmarks/zB6U9/src/Warcraft/grid_graph.jl:289 [inlined]
  [8] (::Zygote.Pullback{Tuple{InferOptBenchmarks.Warcraft.var"##dijkstra_maximizer#12", @Kwargs{}, typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer), Matrix{Float32}}, Tuple{Zygote.Pullback{Tuple{typeof(Graphs.dijkstra_shortest_paths), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, Int64}, Tuple{Zygote.Pullback{Tuple{typeof(Graphs.dijkstra_shortest_paths), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, Int64, LinearAlgebra.Adjoint{Float32, SparseArrays.SparseMatrixCSC{Float32, Int64}}}, Tuple{Zygote.Pullback{Tuple{Graphs.var"##dijkstra_shortest_paths#142", Bool, Bool, Float32, typeof(Graphs.dijkstra_shortest_paths), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, Int64, LinearAlgebra.Adjoint{Float32, SparseArrays.SparseMatrixCSC{Float32, Int64}}}, Tuple{Zygote.var"#2013#back#204"{typeof(identity)}, Zygote.Pullback{Tuple{Type{NamedTuple{(:allpaths, :trackvertices, :maxdist)}}, Tuple{Bool, Bool, Float32}}, Tuple{Zygote.var"#2220#back#315"{Zygote.Jnew{@NamedTuple{allpaths::Bool, trackvertices::Bool, maxdist::Float32}, Nothing, true}}}}, Zygote.ZBack{ChainRules.var"#vcat_pullback#481"{Tuple{ChainRulesCore.ProjectTo{Float64, @NamedTuple{}}}, Tuple{Tuple{}}, Val{1}}}, Zygote.Pullback{Tuple{typeof(Core.kwcall), @NamedTuple{allpaths::Bool, trackvertices::Bool, maxdist::Float32}, typeof(Graphs.dijkstra_shortest_paths), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, Vector{Int64}, LinearAlgebra.Adjoint{Float32, SparseArrays.SparseMatrixCSC{Float32, Int64}}}, Any}}}, Zygote.Pullback{Tuple{typeof(eltype), LinearAlgebra.Adjoint{Float32, SparseArrays.SparseMatrixCSC{Float32, Int64}}}, Tuple{Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}, Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}}}, Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}}}, Zygote.Pullback{Tuple{typeof(Graphs.weights), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}}, Tuple{Zygote.ZBack{ChainRules.var"#adjoint_mat_pullback#1127"{ChainRulesCore.ProjectTo{SparseArrays.SparseMatrixCSC, @NamedTuple{element::ChainRulesCore.ProjectTo{Float32, @NamedTuple{}}, axes::Tuple{Base.OneTo{Int64}, Base.OneTo{Int64}}, rowval::Vector{Int64}, nzranges::Vector{UnitRange{Int64}}, colptr::Vector{Int64}}}}}, Zygote.var"#2180#back#303"{Zygote.var"#back#302"{:weights, Zygote.Context{false}, SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, SparseArrays.SparseMatrixCSC{Float32, Int64}}}}}}}, Zygote.Pullback{Tuple{typeof(InferOptBenchmarks.Warcraft.path_to_matrix), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, Vector{Int64}}, Any}, Zygote.var"#3615#back#1100"{Zygote.var"#1096#1099"}, Zygote.var"#2180#back#303"{Zygote.var"#back#302"{:parents, Zygote.Context{false}, Graphs.DijkstraState{Float32, Int64}, Vector{Int64}}}, Zygote.Pullback{Tuple{typeof(Graphs.nv), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}}, Tuple{Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}, Zygote.Pullback{Tuple{typeof(Graphs.weights), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}}, Tuple{Zygote.ZBack{ChainRules.var"#adjoint_mat_pullback#1127"{ChainRulesCore.ProjectTo{SparseArrays.SparseMatrixCSC, @NamedTuple{element::ChainRulesCore.ProjectTo{Float32, @NamedTuple{}}, axes::Tuple{Base.OneTo{Int64}, Base.OneTo{Int64}}, rowval::Vector{Int64}, nzranges::Vector{UnitRange{Int64}}, colptr::Vector{Int64}}}}}, Zygote.var"#2180#back#303"{Zygote.var"#back#302"{:weights, Zygote.Context{false}, SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, SparseArrays.SparseMatrixCSC{Float32, Int64}}}}}, Zygote.ZBack{Zygote.var"#IntX_pullback#335"}}}, Zygote.Pullback{Tuple{typeof(InferOptBenchmarks.Warcraft.get_path), Vector{Int64}, Int64, Int64}, Any}, Zygote.Pullback{Tuple{typeof(warcraft_grid_graph), Matrix{Float32}}, Tuple{Zygote.Pullback{Tuple{InferOptBenchmarks.Warcraft.var"##warcraft_grid_graph#1", Bool, typeof(warcraft_grid_graph), Matrix{Float32}}, Any}}}}})(Δ::Matrix{Int64})
    @ Zygote ~/.julia/packages/Zygote/nsBv0/src/compiler/interface2.jl:0
  [9] dijkstra_maximizer
    @ ~/.julia/packages/InferOptBenchmarks/zB6U9/src/Warcraft/grid_graph.jl:285 [inlined]
 [10] #291
    @ ~/.julia/packages/Zygote/nsBv0/src/lib/lib.jl:206 [inlined]
 [11] (::Zygote.var"#2169#back#293"{Zygote.var"#291#292"{Tuple{Tuple{Nothing}}, Zygote.Pullback{Tuple{typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer), Matrix{Float32}}, Tuple{Zygote.var"#2366#back#419"{Zygote.var"#pairs_namedtuple_pullback#418"{(), @NamedTuple{}}}, Zygote.Pullback{Tuple{Type{NamedTuple}}, Tuple{}}, Zygote.Pullback{Tuple{InferOptBenchmarks.Warcraft.var"##dijkstra_maximizer#12", @Kwargs{}, typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer), Matrix{Float32}}, Tuple{Zygote.Pullback{Tuple{typeof(Graphs.dijkstra_shortest_paths), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, Int64}, Tuple{Zygote.Pullback{Tuple{typeof(Graphs.dijkstra_shortest_paths), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, Int64, LinearAlgebra.Adjoint{Float32, SparseArrays.SparseMatrixCSC{Float32, Int64}}}, Tuple{Zygote.Pullback{Tuple{Graphs.var"##dijkstra_shortest_paths#142", Bool, Bool, Float32, typeof(Graphs.dijkstra_shortest_paths), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, Int64, LinearAlgebra.Adjoint{Float32, SparseArrays.SparseMatrixCSC{Float32, Int64}}}, Tuple{Zygote.var"#2013#back#204"{typeof(identity)}, Zygote.Pullback{Tuple{Type{NamedTuple{(:allpaths, :trackvertices, :maxdist)}}, Tuple{Bool, Bool, Float32}}, Tuple{Zygote.var"#2220#back#315"{Zygote.Jnew{@NamedTuple{allpaths::Bool, trackvertices::Bool, maxdist::Float32}, Nothing, true}}}}, Zygote.ZBack{ChainRules.var"#vcat_pullback#481"{Tuple{ChainRulesCore.ProjectTo{Float64, @NamedTuple{}}}, Tuple{Tuple{}}, Val{1}}}, Zygote.Pullback{Tuple{typeof(Core.kwcall), @NamedTuple{allpaths::Bool, trackvertices::Bool, maxdist::Float32}, typeof(Graphs.dijkstra_shortest_paths), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, Vector{Int64}, LinearAlgebra.Adjoint{Float32, SparseArrays.SparseMatrixCSC{Float32, Int64}}}, Any}}}, Zygote.Pullback{Tuple{typeof(eltype), LinearAlgebra.Adjoint{Float32, SparseArrays.SparseMatrixCSC{Float32, Int64}}}, Tuple{Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}, Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}}}, Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}}}, Zygote.Pullback{Tuple{typeof(Graphs.weights), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}}, Tuple{Zygote.ZBack{ChainRules.var"#adjoint_mat_pullback#1127"{ChainRulesCore.ProjectTo{SparseArrays.SparseMatrixCSC, @NamedTuple{element::ChainRulesCore.ProjectTo{Float32, @NamedTuple{}}, axes::Tuple{Base.OneTo{Int64}, Base.OneTo{Int64}}, rowval::Vector{Int64}, nzranges::Vector{UnitRange{Int64}}, colptr::Vector{Int64}}}}}, Zygote.var"#2180#back#303"{Zygote.var"#back#302"{:weights, Zygote.Context{false}, SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, SparseArrays.SparseMatrixCSC{Float32, Int64}}}}}}}, Zygote.Pullback{Tuple{typeof(InferOptBenchmarks.Warcraft.path_to_matrix), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, Vector{Int64}}, Any}, Zygote.var"#3615#back#1100"{Zygote.var"#1096#1099"}, Zygote.var"#2180#back#303"{Zygote.var"#back#302"{:parents, Zygote.Context{false}, Graphs.DijkstraState{Float32, Int64}, Vector{Int64}}}, Zygote.Pullback{Tuple{typeof(Graphs.nv), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}}, Tuple{Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}, Zygote.Pullback{Tuple{typeof(Graphs.weights), SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}}, Tuple{Zygote.ZBack{ChainRules.var"#adjoint_mat_pullback#1127"{ChainRulesCore.ProjectTo{SparseArrays.SparseMatrixCSC, @NamedTuple{element::ChainRulesCore.ProjectTo{Float32, @NamedTuple{}}, axes::Tuple{Base.OneTo{Int64}, Base.OneTo{Int64}}, rowval::Vector{Int64}, nzranges::Vector{UnitRange{Int64}}, colptr::Vector{Int64}}}}}, Zygote.var"#2180#back#303"{Zygote.var"#back#302"{:weights, Zygote.Context{false}, SimpleWeightedGraphs.SimpleWeightedDiGraph{Int64, Float32}, SparseArrays.SparseMatrixCSC{Float32, Int64}}}}}, Zygote.ZBack{Zygote.var"#IntX_pullback#335"}}}, Zygote.Pullback{Tuple{typeof(InferOptBenchmarks.Warcraft.get_path), Vector{Int64}, Int64, Int64}, Any}, Zygote.Pullback{Tuple{typeof(warcraft_grid_graph), Matrix{Float32}}, Tuple{Zygote.Pullback{Tuple{InferOptBenchmarks.Warcraft.var"##warcraft_grid_graph#1", Bool, typeof(warcraft_grid_graph), Matrix{Float32}}, Any}}}}}}}}})(Δ::Matrix{Int64})
    @ Zygote ~/.julia/packages/ZygoteRules/M4xmc/src/adjoint.jl:72
 [12] call_composed
    @ ./operators.jl:1045 [inlined]
 [13] (::Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{Matrix{Float32}}, @Kwargs{}}, Any})(Δ::Matrix{Int64})
    @ Zygote ~/.julia/packages/Zygote/nsBv0/src/compiler/interface2.jl:0
 [14] call_composed
    @ ./operators.jl:1044 [inlined]
 [15] #_#103
    @ ./operators.jl:1041 [inlined]
 [16] (::Zygote.Pullback{Tuple{Base.var"##_#103", @Kwargs{}, ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Matrix{Float32}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{Zygote.var"#2013#back#204"{typeof(identity)}, Zygote.Pullback{Tuple{typeof(Base.maybeconstructor), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{}}}}, Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), typeof(Zygote._jvec)}, Tuple{Zygote.var"#2013#back#204"{typeof(identity)}, Zygote.Pullback{Tuple{typeof(Base.maybeconstructor), typeof(Zygote._jvec)}, Tuple{}}}}, Zygote.var"#2169#back#293"{Zygote.var"#291#292"{Tuple{Tuple{Nothing}, Tuple{Nothing}}, Zygote.var"#2013#back#204"{typeof(identity)}}}, Zygote.var"#2180#back#303"{Zygote.var"#back#302"{:outer, Zygote.Context{false}, ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, typeof(Zygote._jvec)}}, Zygote.var"#2180#back#303"{Zygote.var"#back#302"{:inner, Zygote.Context{false}, ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}}}}, Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{Matrix{Float32}}, @Kwargs{}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{Matrix{Float32}}, @Kwargs{}}, Any}, Zygote.var"#2029#back#213"{Zygote.var"#back#211"{2, 1, Zygote.Context{false}, typeof(Zygote._jvec)}}, Zygote.Pullback{Tuple{typeof(Zygote._jvec), Matrix{Int64}}, Tuple{Zygote.Pullback{Tuple{typeof(vec), Matrix{Int64}}, Tuple{Zygote.var"#2763#back#609"{Zygote.var"#603#607"{Matrix{Int64}, Tuple{Int64}}}, Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}}}}}, Zygote.var"#2141#back#281"{Zygote.var"#277#280"}}}}})(Δ::Vector{Int64})
    @ Zygote ~/.julia/packages/Zygote/nsBv0/src/compiler/interface2.jl:0
 [17] #291
    @ ~/.julia/packages/Zygote/nsBv0/src/lib/lib.jl:206 [inlined]
 [18] #2169#back
    @ ~/.julia/packages/ZygoteRules/M4xmc/src/adjoint.jl:72 [inlined]
 [19] ComposedFunction
    @ ./operators.jl:1041 [inlined]
 [20] (::Zygote.Pullback{Tuple{ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Matrix{Float32}}, Tuple{Zygote.var"#2366#back#419"{Zygote.var"#pairs_namedtuple_pullback#418"{(), @NamedTuple{}}}, Zygote.var"#2169#back#293"{Zygote.var"#291#292"{Tuple{Tuple{Nothing, Nothing}, Tuple{Nothing}}, Zygote.Pullback{Tuple{Base.var"##_#103", @Kwargs{}, ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Matrix{Float32}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{Zygote.var"#2013#back#204"{typeof(identity)}, Zygote.Pullback{Tuple{typeof(Base.maybeconstructor), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{}}}}, Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), typeof(Zygote._jvec)}, Tuple{Zygote.var"#2013#back#204"{typeof(identity)}, Zygote.Pullback{Tuple{typeof(Base.maybeconstructor), typeof(Zygote._jvec)}, Tuple{}}}}, Zygote.var"#2169#back#293"{Zygote.var"#291#292"{Tuple{Tuple{Nothing}, Tuple{Nothing}}, Zygote.var"#2013#back#204"{typeof(identity)}}}, Zygote.var"#2180#back#303"{Zygote.var"#back#302"{:outer, Zygote.Context{false}, ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, typeof(Zygote._jvec)}}, Zygote.var"#2180#back#303"{Zygote.var"#back#302"{:inner, Zygote.Context{false}, ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}}}}, Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{Matrix{Float32}}, @Kwargs{}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{Matrix{Float32}}, @Kwargs{}}, Any}, Zygote.var"#2029#back#213"{Zygote.var"#back#211"{2, 1, Zygote.Context{false}, typeof(Zygote._jvec)}}, Zygote.Pullback{Tuple{typeof(Zygote._jvec), Matrix{Int64}}, Tuple{Zygote.Pullback{Tuple{typeof(vec), Matrix{Int64}}, Tuple{Zygote.var"#2763#back#609"{Zygote.var"#603#607"{Matrix{Int64}, Tuple{Int64}}}, Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}}}}}, Zygote.var"#2141#back#281"{Zygote.var"#277#280"}}}}}}}, Zygote.Pullback{Tuple{Type{NamedTuple}}, Tuple{}}, Zygote.var"#2013#back#204"{typeof(identity)}}})(Δ::Vector{Int64})
    @ Zygote ~/.julia/packages/Zygote/nsBv0/src/compiler/interface2.jl:0
 [21] (::Zygote.var"#75#76"{Zygote.Pullback{Tuple{ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Matrix{Float32}}, Tuple{Zygote.var"#2366#back#419"{Zygote.var"#pairs_namedtuple_pullback#418"{(), @NamedTuple{}}}, Zygote.var"#2169#back#293"{Zygote.var"#291#292"{Tuple{Tuple{Nothing, Nothing}, Tuple{Nothing}}, Zygote.Pullback{Tuple{Base.var"##_#103", @Kwargs{}, ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Matrix{Float32}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{Zygote.var"#2013#back#204"{typeof(identity)}, Zygote.Pullback{Tuple{typeof(Base.maybeconstructor), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{}}}}, Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), typeof(Zygote._jvec)}, Tuple{Zygote.var"#2013#back#204"{typeof(identity)}, Zygote.Pullback{Tuple{typeof(Base.maybeconstructor), typeof(Zygote._jvec)}, Tuple{}}}}, Zygote.var"#2169#back#293"{Zygote.var"#291#292"{Tuple{Tuple{Nothing}, Tuple{Nothing}}, Zygote.var"#2013#back#204"{typeof(identity)}}}, Zygote.var"#2180#back#303"{Zygote.var"#back#302"{:outer, Zygote.Context{false}, ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, typeof(Zygote._jvec)}}, Zygote.var"#2180#back#303"{Zygote.var"#back#302"{:inner, Zygote.Context{false}, ComposedFunction{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}}}}, Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(Zygote._jvec), typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{Matrix{Float32}}, @Kwargs{}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(InferOptBenchmarks.Warcraft.dijkstra_maximizer)}, Tuple{Matrix{Float32}}, @Kwargs{}}, Any}, Zygote.var"#2029#back#213"{Zygote.var"#back#211"{2, 1, Zygote.Context{false}, typeof(Zygote._jvec)}}, Zygote.Pullback{Tuple{typeof(Zygote._jvec), Matrix{Int64}}, Tuple{Zygote.Pullback{Tuple{typeof(vec), Matrix{Int64}}, Tuple{Zygote.var"#2763#back#609"{Zygote.var"#603#607"{Matrix{Int64}, Tuple{Int64}}}, Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}}}}}, Zygote.var"#2141#back#281"{Zygote.var"#277#280"}}}}}}}, Zygote.Pullback{Tuple{Type{NamedTuple}}, Tuple{}}, Zygote.var"#2013#back#204"{typeof(identity)}}}})(Δ::Vector{Int64})
    @ Zygote ~/.julia/packages/Zygote/nsBv0/src/compiler/interface.jl:91
 [22] withjacobian(f::Function, args::Matrix{Float32})
    @ Zygote ~/.julia/packages/Zygote/nsBv0/src/lib/grad.jl:150
 [23] jacobian(f::Function, args::Matrix{Float32})
    @ Zygote ~/.julia/packages/Zygote/nsBv0/src/lib/grad.jl:128
 [24] top-level scope
    @ ~/work/JuliaCon2024-InferOpt/JuliaCon2024-InferOpt/main.qmd:145

Computing derivatives (ForwardDiff)

… or is zero almost everywhere

using ForwardDiff

g = ForwardDiff.jacobian(maximizer, θ)
heatmap(g; kw...)

any(g .!= 0.0)

false

Regularizing the maximizer

using InferOpt

perturbed_maximizer = PerturbedMultiplicative(maximizer; ε=0.2, nb_samples=100)
yp = perturbed_maximizer(-θ_true)

12×12 Matrix{Float64}:
 1.0   0.0   0.0   0.0  0.0   0.0   0.0   0.0   0.0  0.0  0.0   0.0
 0.48  0.52  0.0   0.0  0.0   0.0   0.0   0.0   0.0  0.0  0.0   0.0
 0.38  0.47  0.15  0.0  0.0   0.0   0.0   0.0   0.0  0.0  0.0   0.0
 0.53  0.43  0.04  0.0  0.0   0.0   0.0   0.0   0.0  0.0  0.0   0.0
 0.01  0.95  0.04  0.0  0.0   0.0   0.0   0.0   0.0  0.0  0.0   0.0
 0.0   0.01  0.99  0.0  0.0   0.0   0.0   0.0   0.0  0.0  0.0   0.0
 0.0   0.0   0.01  1.0  0.0   0.0   0.0   0.0   0.0  0.0  0.0   0.0
 0.0   0.0   0.0   0.0  1.0   0.0   0.0   0.0   0.0  0.0  0.0   0.0
 0.0   0.0   0.0   0.0  0.02  0.98  0.0   0.0   0.0  0.0  0.0   0.0
 0.0   0.0   0.0   0.0  0.0   0.02  0.98  0.0   0.0  0.0  0.0   0.0
 0.0   0.0   0.0   0.0  0.0   0.0   0.02  0.98  0.0  0.0  0.44  0.0
 0.0   0.0   0.0   0.0  0.0   0.0   0.0   0.02  1.0  1.0  0.56  1.0

heatmap(yp; kw..., legend=true)

It is now differentiable!

Thanks to custom backward rules

Zygote.jacobian(perturbed_maximizer, θ)[1]

144×144 Matrix{Float64}:
  0.0        0.0        0.0         …   0.0         0.0         0.0
 -0.187746   0.511398   0.301636        0.0128768   0.108458   -0.32656
 -0.094079   0.0432884  0.140508        0.00417465  0.0693126  -0.0824386
  0.0        0.0        0.0             0.0         0.0         0.0
  0.0        0.0        0.0             0.0         0.0         0.0
  0.0        0.0        0.0         …   0.0         0.0         0.0
  0.0        0.0        0.0             0.0         0.0         0.0
  0.0        0.0        0.0             0.0         0.0         0.0
  0.0        0.0        0.0             0.0         0.0         0.0
  0.0        0.0        0.0             0.0         0.0         0.0
  ⋮                                 ⋱
  0.0        0.0        0.0         …   0.0         0.0         0.0
  0.0        0.0        0.0             0.0         0.0         0.0
  0.0        0.0        0.0             0.0         0.0         0.0
  0.0        0.0        0.0             0.0         0.0         0.0
  0.0        0.0        0.0             0.0         0.0         0.0
  0.0        0.0        0.0         …   0.0         0.0         0.0
  0.0        0.0        0.0             0.0         0.0         0.0
  0.390815  -0.068813   0.00554018     -0.2066      0.732822    0.239241
  0.0        0.0        0.0             0.0         0.0         0.0

Allows defining a differentiable loss

For supervised learning:

loss = FenchelYoungLoss(perturbed_maximizer)
loss(θ, y_true)

2.502653261239063

Gradients are defined:

heatmap(Zygote.gradient(t -> loss(t, y_true), θ)[1]; kw..., legend=true)

Training

Usual Flux training loop

using Flux

opt_state = Flux.setup(Adam(1e-3), model)
loss_history = Float64[]
for epoch in 1:50
    val, grads = Flux.withgradient(model) do m
        sum(loss(m(x), y) for (x, y, _) in train_dataset) / length(train_dataset)
    end
    Flux.update!(opt_state, model, grads[1])
    push!(loss_history, val)
end
plot(loss_history)

Prediction

Predicted costs and path

(x, y_true, θ_true) = test_dataset[1]
θ = model(x)
y = UInt8.(maximizer(θ))
plot_data(x, y, θ; θ_true)

Thank you!

Slides: https://batyleo.github.io/JuliaCon2024-InferOpt/
Preprint paper for maths internals: https://arxiv.org/abs/2207.13513
GitHub repo: https://github.com/JuliaDecisionFocusedLearning/InferOpt.jl
