Optimization algorithms

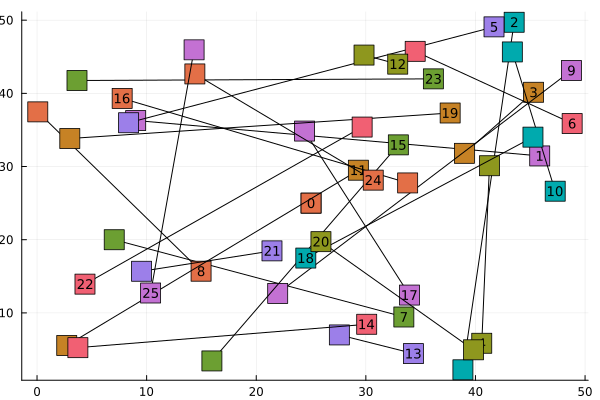

In this section, we describe the various optimization algorithms implemented in this package, and illustrate them on the following small instance, with 25 tasks and 10 scenarios:

using StochasticVehicleScheduling
using Random
Random.seed!(1)  # fix the seed for reproducibility
instance = create_random_instance(; nb_tasks=25, nb_scenarios=10)

using Plots
fig = plot()
for i in 1:(get_nb_tasks(instance) + 1)
    task = instance.city.tasks[i]
    (; start_point, end_point) = task
    points = [(start_point.x, start_point.y), (end_point.x, end_point.y)]
    plot!(fig, points; color=:black, label="")
    scatter!(
        fig,
        points;
        marker=:rect,
        markersize=10,
        label="",
        series_annotations=[("$(i-1)", 9), ""],
    )
end

qt.qpa.xcb: could not connect to display
qt.qpa.plugin: Could not load the Qt platform plugin "xcb" in "" even though it was found.
This application failed to start because no Qt platform plugin could be initialized. Reinstalling the application may fix this problem.

Available platform plugins are: linuxfb, minimal, offscreen, vnc, xcb.

Aborted (core dumped)
connect: Connection refused
GKS: can't connect to GKS socket application

GKS: Open failed in routine OPEN_WS
GKS: GKS not in proper state. GKS must be either in the state WSOP or WSAC in routine ACTIVATE_WS

Heuristic algorithms

The first category of algorithms implemented are heuristics, which given good but not necessarily optimal solutions in a short amount of time.

Deterministic heuristic

The first heuristic consists in solving a deterministic version of the instance, which minimizes vehicle costs plus travel costs of vehicles:

\[\begin{aligned} \min & \, c_{\text{vehuicle}}\sum_{a\in \delta^+(o)} y_a + c_{\text{delay}}\sum_{a\in a}w_a y_a &\\ s.t. & \sum_{a\in \delta^-(v)} y_a = \sum_{a\in \delta^+(v)} y_a, & \forall v \in\bar V\\ & \sum_{a\in \delta^-(v)} y_a = 1, & \forall v \in\bar V\\ & y_a \in \{0, 1\}, &\forall a\in A \end{aligned}\]

This is a linear flow program very easy to solve:

_, h_solution = solve_deterministic_VSP(instance)
h_value = evaluate_solution(h_solution, instance)
println("Heuristic solution value: $h_value")

Heuristic solution value: 7696.754564078043

Local search

A more advanced heuristic is the local search, which uses the deterministic solution as an initialization point, and try to improve it by applying elementary modifications to it.

ls_solution = heuristic_solution(instance; nb_it=1_000)
ls_value = evaluate_solution(ls_solution, instance)
println("Local search solution value: $ls_value")

Local search solution value: 6810.623923188165

We obtain a better solution than the previous heuristic!

Exact algorithms

There are also two exact optimization algorithms implemented in this package.

MIP formulation

One way to solve the stochastic vehicle scheduling problem is to model it as the following linear program with quadratic constraints:

\[\begin{aligned} \min_{d, y} & \,c_{\text{delay}}\dfrac{1}{|S|}\sum\limits_{s\in S}\sum\limits_{v\in V\backslash\{o,d\}} d_v^s + c_{\text{vehicle}} \sum\limits_{a\in\delta^+(o)}y_a\\ \text{s.t.} & \sum_{a\in\delta^-(v)}y_a = \sum_{a\in\delta^+(v)}y_a &\forall v\in \bar V\\ & \sum_{a\in\delta^-(v)}y_a = 1 &\forall v\in \bar V\\ & d_v^s \geq \gamma_v^s + \sum_{\substack{a\in\delta^-(v) \\ a=(u, v)}} (d_u^s - \delta_{u, v}^s) y_a & \forall v\in \bar V, \forall s\in S\\ & d_v^s\geq \gamma_v^s & \forall v\in \bar V, \forall s\in S\\ & y_a\in\{0,1\} & \forall a\in A \end{aligned}\]

Quadratic delay constraints can be linearized using Mc Cormick linearization.

mip_value, mip_solution = solve_scenarios(instance)
println("MIP optimal value: $mip_value")

MIP optimal value: 6792.2213746798225

The solution value is better than both heuristic values, as expected.

Column generation formulation

Another option is to use a column generation approach with variables $y_P$ which equals one if route $P\in \mathycal P$ is selected. Cost of a path $P$: $c_P^s = c_{\text{vehicle}} + c_\text{delay}\times \sum_{v\in P} d_v^s$

\[\begin{aligned} \min & \frac{1}{|S|}\sum_{s\in S}\sum_{P\in\mathcal{P}}c_P^s y_P &\\ \text{s.t.} & \sum_{p\ni v} y_P = 1 & \forall v\in \bar V & \quad(\lambda_v\in\mathbb R)\\ & y_P\in\{0,1\} & \forall p\in \mathcal{P} & \end{aligned}\]

The associated sub-problem of the column generation formulation is a constrained shortest path problem of the form :

\[\min_{P\in\mathcal P} (c_P - \sum_{v\in P}\lambda_v)\]

It can be solved using generalized $A^\star$ algorithms (see theoretical details Parmentier 2017 and ConstrainedShortestPath.jl for its Julia implementation).

col_solution = column_generation_algorithm(instance)
col_value = evaluate_solution(col_solution, instance)
println("Column generation optimal value: $col_value")

Column generation optimal value: 6792.221374679822

The column generation solution has the same value as the MIP one, as expected (both are optimal).
